Safety Sign “B”
Our products are certified by the Institute of Mechanization of Building and Rock Mining and the safety mark B.
Compliance with PN-EN 12810 – Façade scaffolding made of prefabricated elements and PN-EN 12811 – Temporary structures used on the construction site – Information on materials.

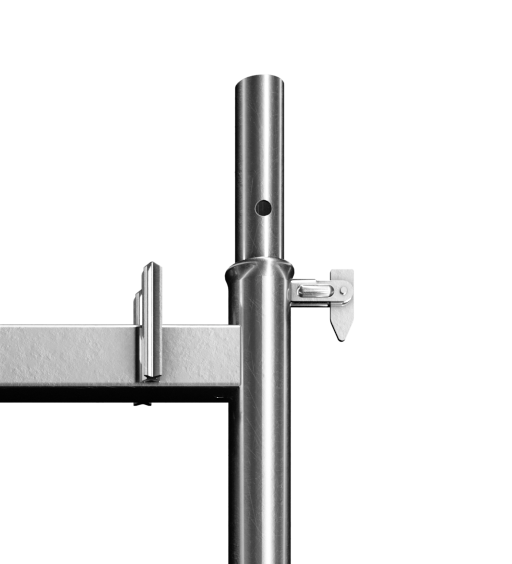

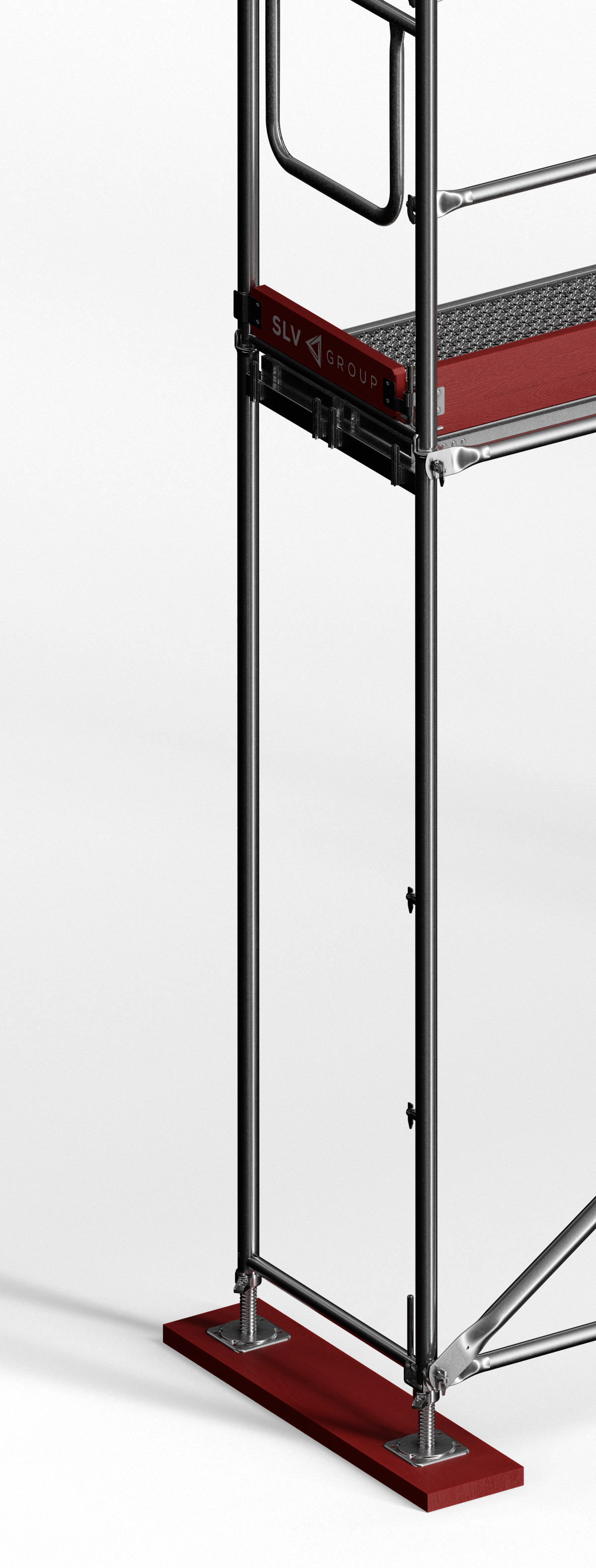

Steel frame
The steel frames are made of a 48.3 pipe with a 2.7 mm wall.
The steel grade is S235 JRH with the yield strength Re. min. greater than 280 MPa, most often Re is in the range of about 280-285 MPa.
Parameters and variants
| Catalog number | Height [m] | Weight [kg] |
|---|---|---|
|

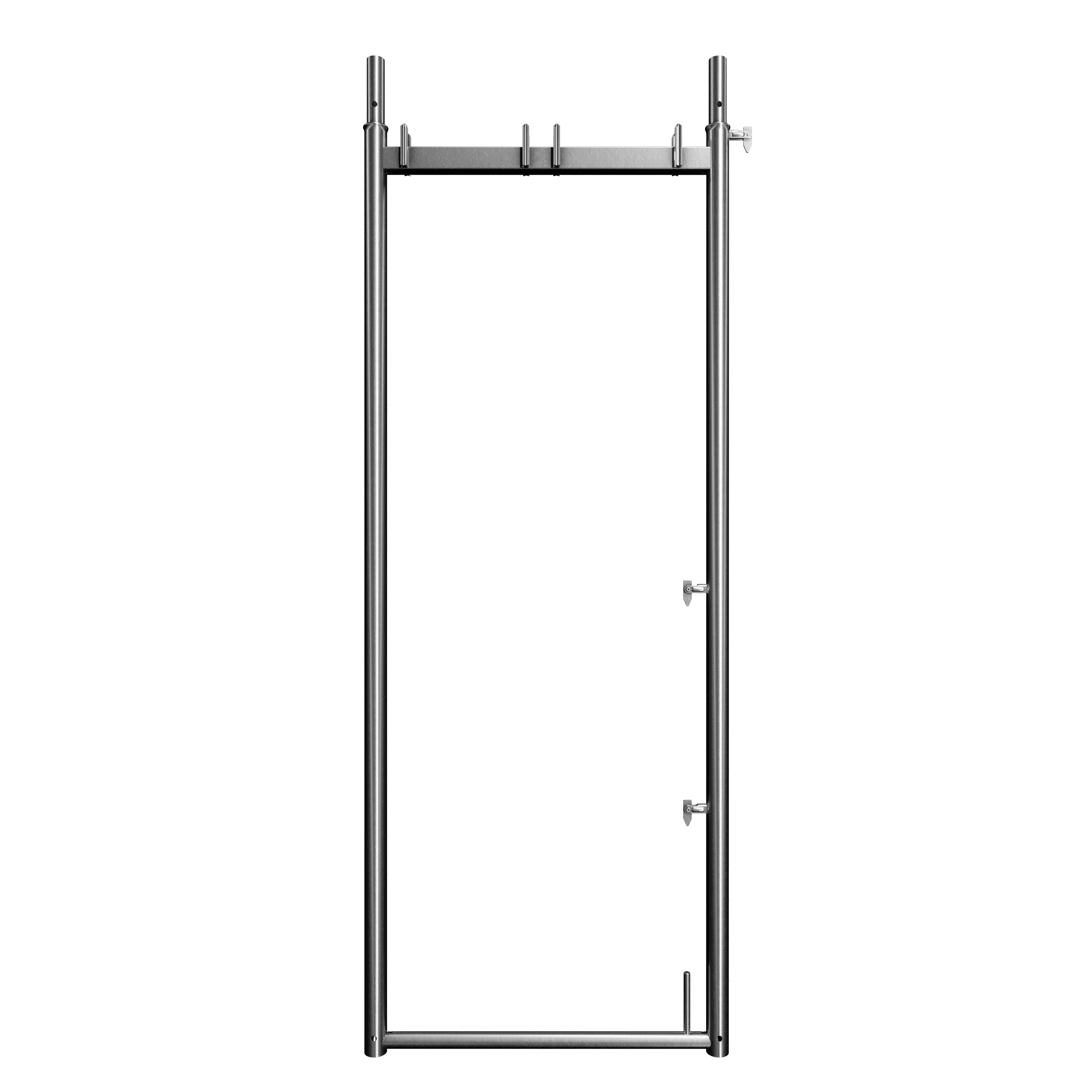

SLV-70-01-01-01
Steel vertical frame
|
2,00 | 0,74 |
|

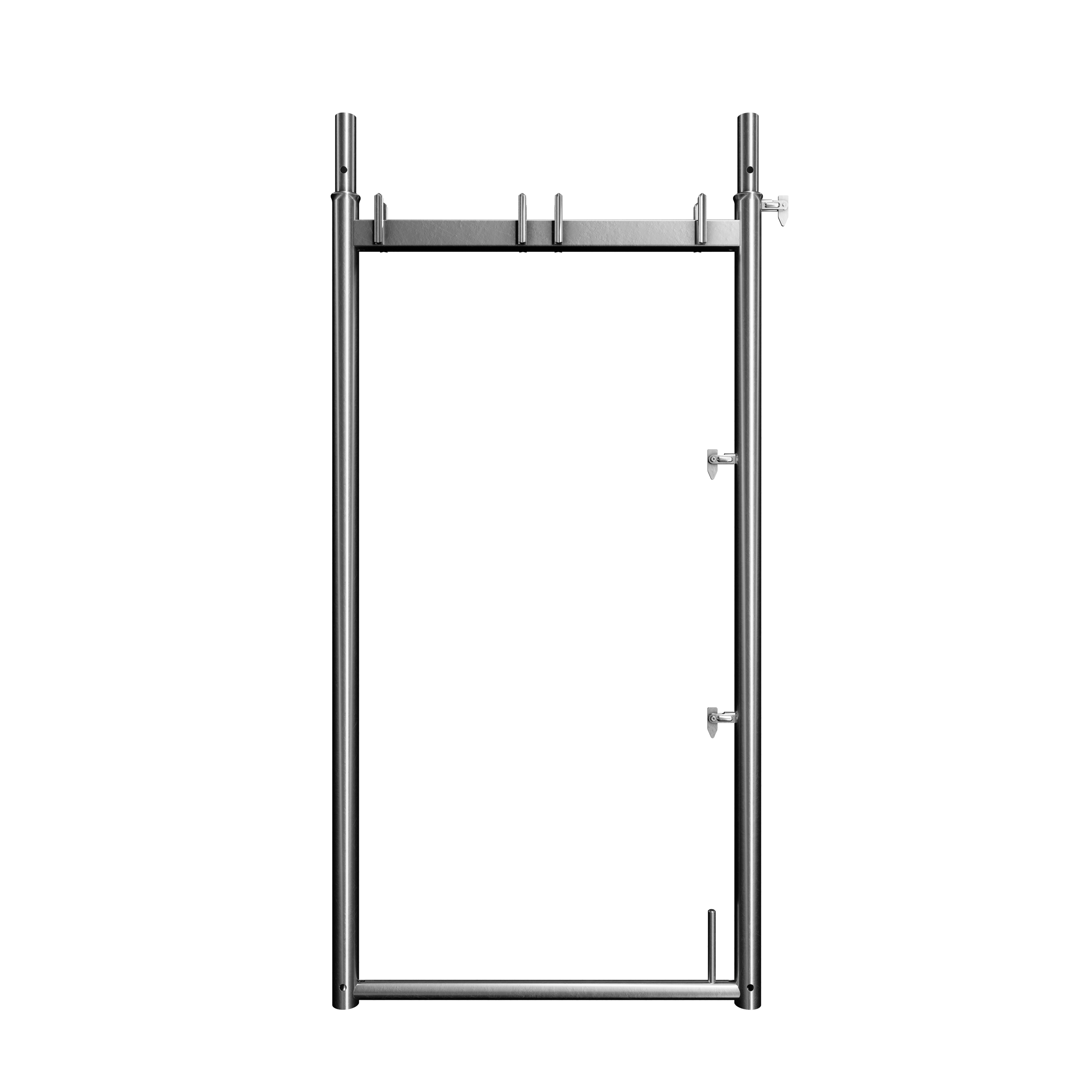

SLV-70-01-01-02
Steel vertical frame
|
1,50 | 0,74 |
|

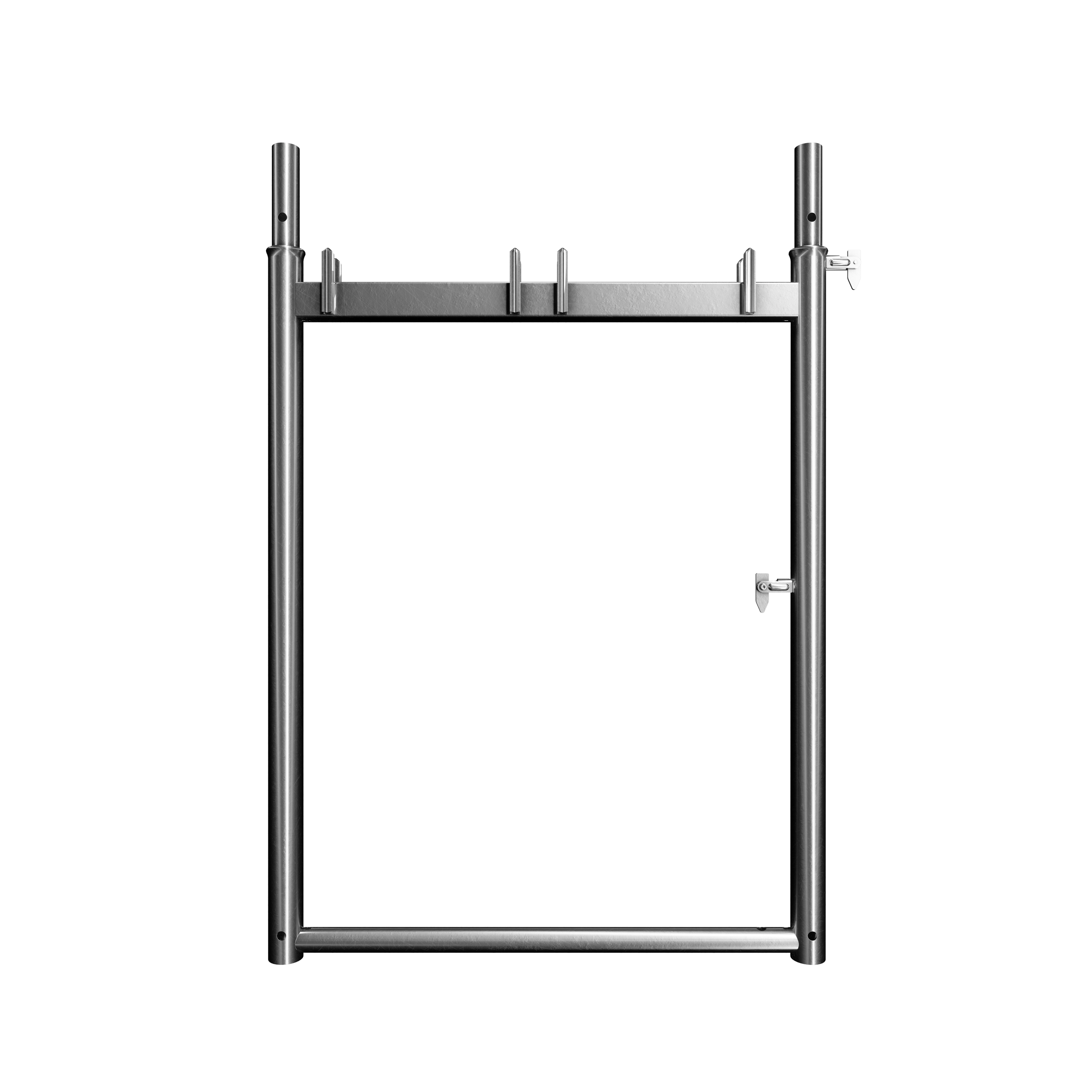

SLV-70-01-01-03
Steel vertical frame
|
1,00 | 0,74 |
|

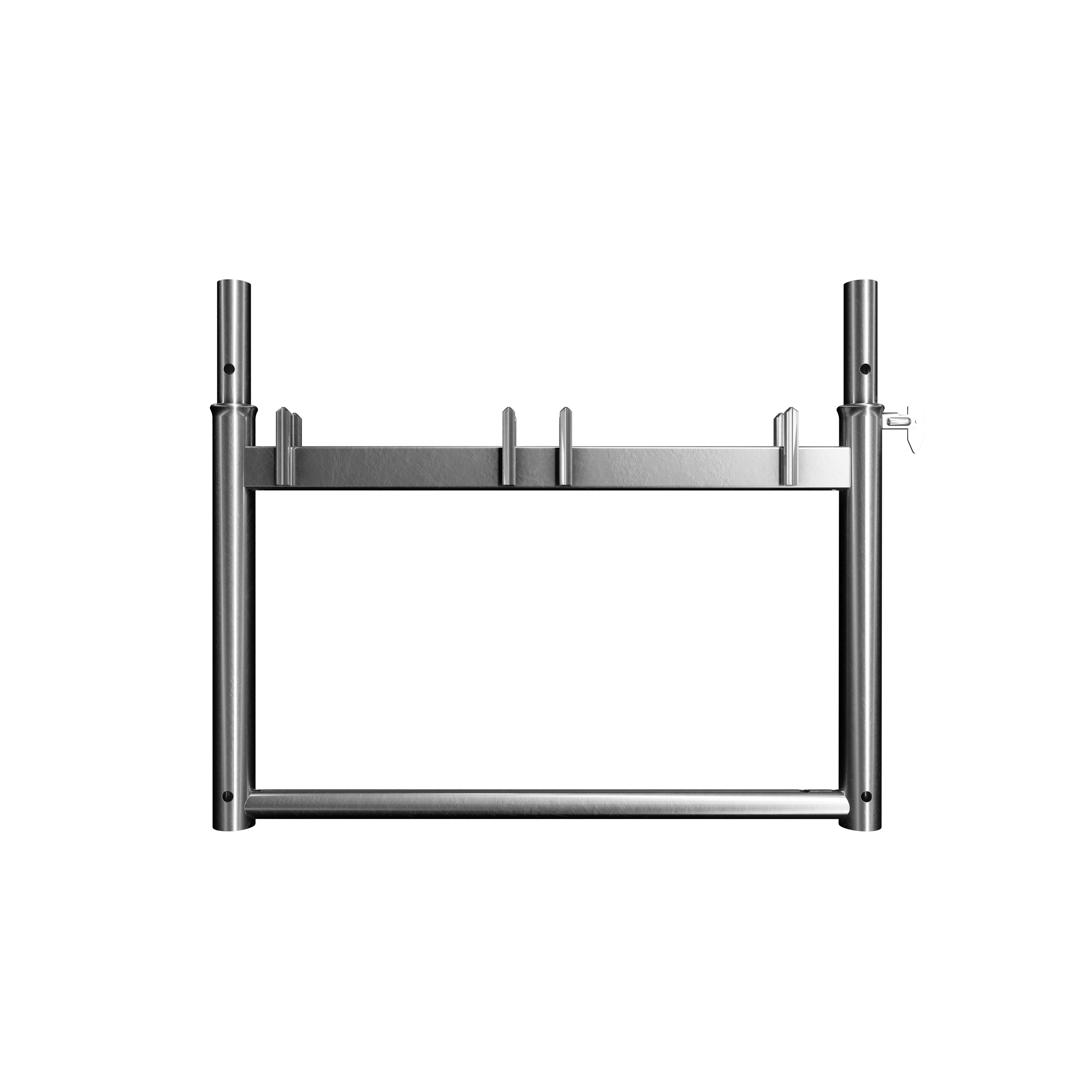

SLV-70-01-01-04
Steel vertical frame
|
0,50 | 0,74 |
